Titanium Copper Composite Tube

Main properties of titanium-copper composite tube

Titanium cladding copper tube performance during the titanium cladding process, due to the large extrusion ratio, the two metals have achieved metallurgical bonding, and the composite interface is a wave interface, and the interface width is generally 0.014-0. The composite 0010010 nbsp;tube 0010010 nbsp;strength is above 125MPa, the shear strength of the cladding interface is 250MPa, and the bonding rate is detected by ultrasonic flaw detection. The separation phenomenon of titanium and copper is less than 0. 2%. The detection method uses the method of multiple reflection of the bottom wave to contact or non-cladding

Titanium clad material introduction

The metal composite material is a raw material composed of two or more kinds of monomer raw materials with different chemical properties, or a new raw material prepared by composite treatment of a matrix raw material and a reinforced raw material. Compared with monomer raw materials, the functions of composite raw materials have many things in common. Its primary strength is that mechanical functions, physical functions or chemical functions can meet specific functional requirements or reduce costs, which cannot be achieved by monomer raw materials.

At present, there are many types of titanium composite raw materials, such as titanium steel composite plates, titanium clad copper rods, titanium copper and titanium steel transition joints. Titanium composite raw materials can not only satisfy the user 0010010 #39;s application needs, but also have a lower price than pure titanium or Chin alloy. Popular with shopping malls. For example, titanium steel composite board has both the strength of steel and the corrosion resistance of titanium, and is widely used in the production of metallurgical and chemical equipment.

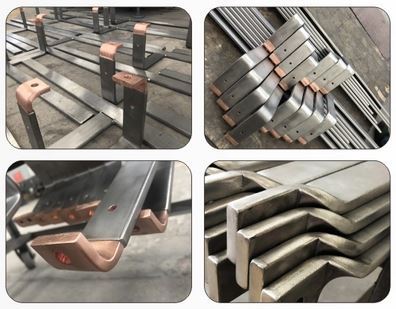

Titanium-copper composite rods are commonly known as titanium-clad copper rods. The metal anode of the electrolytic cell is supported by a titanium-copper composite rod. Its function has three points: one is to support the anode; the other is to conduct electricity; and the third is to resist corrosion. In order to satisfy these requirements, the corrosion resistance of titanium and the conductivity of copper are used to connect the two together. The composite bar is copper in the middle, covered with a layer of titanium, and has a square shape and a palace lamp shape, which fully satisfies the application requirements. Titanium-copper composite pipe, inner copper and outer titanium, its strength lies in saving copper material and good corrosion resistance.
